This Sysmac-based solution allows to handle devices that may be added, removed, or vary in number without needing to change or duplicate your Sysmac Studio project every time. You maintain 1 project file per machine type and configures the various machine options ... even in runtime!
The Challenge: Every machine is a new project
Let's face it: no matter how many machines of type X or Y you produce each year, almost every delivery becomes a custom job. Customers demand changes in layout, speed, materials, safety functionality, or product handling.
As a result, machine builders face the recurring challenge of:
- Redundant engineering efforts
- Longer commissioning times
- Higher risks of errors and after-sales issues
- Increased costs and delays
EtherCAT Extended Functions: The enabler of modular machines
OMRON’s EtherCAT Extended Functions (EEF v3) redefine how we approach the design and implementation of modular machines. They go beyond standard network communication. Automatic detection and mapping of the EtherCAT I/O and motion devices, and with that exact functionality present in the machine, plus integrity of hardware troubleshooting, facilitate scalable machine sections with plug-and-play EtherCAT nodes. As a result, it allows machine builders to maintain a single project template and configure specific machine options at runtime.

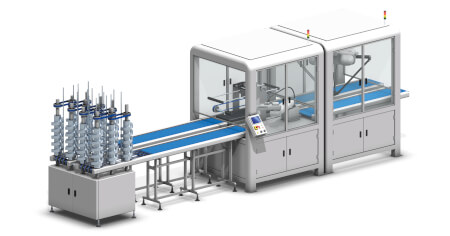

Modular machine design and commisioning
Make your machines more flexible, easier to maintain, and faster to deploy with EtherCAT Extended Functions.
- Quick & Simple Commissioning – Enjoy a software-free setup. Just restore PLC program, User interface, Network topology and Safety project from external storage directly to hardware. Follow the HMI wizard to validate all machine stations in a few minutes.
- Effortless Maintenance – Thanks to the EtherCAT interface, full machine maintenance becomes straightforward: monitor hardware and interface status, review event logs, and reset errors — all directly from the embedded HMI environment.
EtherCAT: Powering the Entire Machine on One Network
Customised Machines: Modular design in an integrated environment
Enabling Technologies
Információ és gépbiztonság felügyelet
Az NX5 moduláris egyetemes gépvezérlő integrálja a információ és gépbiztonság felügyeletet, új sebességi szintet biztosítva a gyártóüzemek számára. Felgyorsíthatja az összes folyamatot az üzembe helyezéstől az üzemeltetésig és a karbantartásig.
NA sorozat – A Sysmac HMI
A Sysmac automatizálási platform részeként az OMRON NA HMI a gépadatokat információvá alakítja át, információkat jelenít meg, és az FA gyártóüzemek előírásainak megfelelően vezérli az eszközöket. Az NA sorozat gyorsabb, hatékonyabb vezérlést és felügyeletet tesz lehetővé. A 16 770 000 színt megjelenítő széles képernyőnek köszönhetően a dinamikus, intuitív és prediktív HMI vonzóbbá és versenyképesebbé teszi az ipari gépeket.
EthercAT at work
A világ legnagyobb matracgyártó gépeket előállító vállalatának számító Elektroteks a teljes gyártóberendezés-portfóliójában bevezette az OMRON Sysmac integrált automatizálási platformját.

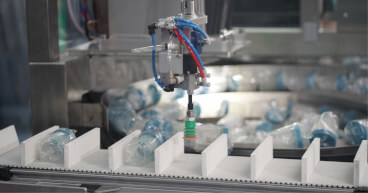

Samas and OMRON enhance end-of-line operations in medical diagnostics
