Lineáris tengelyek (kartézián) - Accurax

Lineáris tengelyek (kartézián) - Accurax

Speciális lineáris motortengelyek

Nagy hatékonyságú, vasmagos lineáris motorok és mágnessínek egy több mint 100 standard lineáris motortengelyt számláló termékcsaládban.

  • Kis tömegű mozgó alkatrészek a nagyfokú dinamika érdekében
  • Optimalizált löket–termékhossz arány
  • 5 m/s maximális sebesség µm-es ismétlési pontossággal
  • Kisméretű és hatékonyságorientált kivitel
  • Sokoldalú és használatra kész
  • Műszaki adatok: 230/400 VAC, 48–760 N (2 000 N csúcserő)

Specifikáció és rendelési információ

Ordering information

Note:

The symbols … show the recommended sequence to select the servomotor, cables and serial converter for a linear motors system.

Linear motor axis

230 VAC single phase/400 VAC three phase

Symbol Specifications Linear servo drive Order code
2
For effective stroke distances available see dimensions section
Accurax G5 EtherCAT
Rated force Peak force 230 V 400 V
48 N 120 N R88D-KN02H-ECT-L R88D-KN06F-ECT-L R88L-EA-AF-0303-⬜⬜⬜⬜-0005
96 N 240 N R88D-KN04H-ECT-L R88D-KN10F-ECT-L R88L-EA-AF-0306-⬜⬜⬜⬜-0005
160 N 450 N R88D-KN08H-ECT-L R88D-KN15F-ECT-L R88L-EA-AF-0606-⬜⬜⬜⬜-0005
240 N 675 N R88D-KN10H-ECT-L R88D-KN20F-ECT-L R88L-EA-AF-0609-⬜⬜⬜⬜-0005
320 N 900 N R88D-KN15H-ECT-L R88D-KN30F-ECT-L R88L-EA-AF-0612-⬜⬜⬜⬜-0005
608 N 1800 N R88D-KN15H-ECT-L R88D-KN30F-ECT-L R88L-EA-AF-1112-⬜⬜⬜⬜-0005
760 N 2250 N R88D-KN15H-ECT-L R88D-KN30F-ECT-L R88L-EA-AF-1115-⬜⬜⬜⬜-0005

Servo drive

② Refer to Accurax G5 servo drive chapter for detailed drive specifications and selection of drive accessories.

Encoder cable

Symbol Appearance Specifications Order code
Encoder cable for linear motor axis
(Connectors R88A-CNK41L and DB-15)
1.5 m R88A-CRKN001-5CR-E
3 m R88A-CRKN003CR-E
5 m R88A-CRKN005CR-E
10 m R88A-CRKN010CR-E
15 m R88A-CRKN015CR-E
20 m R88A-CRKN020CR-E

Power cable

Symbol Appearance Specifications Order code
For linear motor axis
R88L-EA-AF-0303-_
R88L-EA-AF-0306-_
1.5 m R88A-CAWK001-5S-DE
3 m R88A-CAWK003S-DE
5 m R88A-CAWK005S-DE
10 m R88A-CAWK010S-DE
15 m R88A-CAWK015S-DE
20 m R88A-CAWK020S-DE
For linear motor axis
R88L-EA-AF-0606-_
R88L-EA-AF-0609-_
R88L-EA-AF-0612-_
R88L-EA-AF-1112-_
R88L-EA-AF-1115-_
1.5 m R88A-CAWL001-5S-DE
3 m R88A-CAWL003S-DE
5 m R88A-CAWL005S-DE
10 m R88A-CAWL010S-DE
15 m R88A-CAWL015S-DE
20 m R88A-CAWL020S-DE

Accessories for linear motor models with optional encoders (non-standard encoder)

Serial converter unit

Specifications Order code
Serial converter unit from 1 Vpp to G5 serial data transmission (with KTY sensor detection of iron-core motor coil) R88A-SC01K-E
Serial converter unit from 1 Vpp to G5 serial data transmission (with NTC sensor detection of ironless motor coil) R88A-SC02K-E
Note:

If no temperature sensor is needed, then it does not matter which converter you use.

Linear encoder cable to serial converter

Appearance Specifications Order code
Extension cable from linear encoder to -serial converter.
(Connector DB-15)
(This extension cable is optional)
1.5 m R88A-CFKA001-5CR-E
3 m R88A-CFKA003CR-E
5 m R88A-CFKA005CR-E
10 m R88A-CFKA010CR-E
15 m R88A-CFKA015CR-E

Hall and temperature sensors cable to serial converter

Appearance Specifications Order code
Extension cable from hall and temperature sensors to serial converter.
(Connector DB-9)
(This extension cable is optional)
1.5 m R88A-CFKB001-5CR-E
3 m R88A-CFKB003CR-E
5 m R88A-CFKB005CR-E
10 m R88A-CFKB010CR-E
15 m R88A-CFKB015CR-E

Connectors

Specification Order code
Accurax G5 servo drive encoder connector (for CN4) R88A-CNK41L
Hypertac power cable connector IP67 LPRA-06B-FRBN170

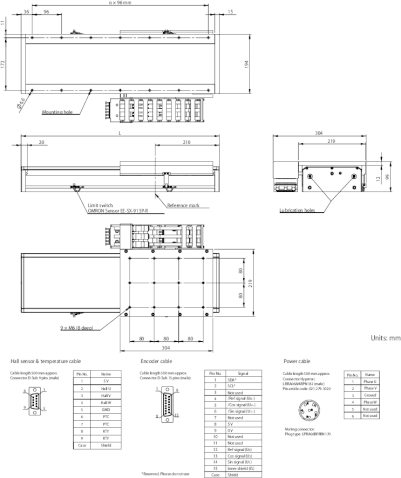

Dimensions

R88L-EA-AF-0303-_ (230/400 VAC)

Linear axis model Effective stroke (mm) L (mm) n N° of mounting holes Weight of moving table
including motor coil (kg)
Weight of the
complete axis (kg)
R88L-EA-AF-0303-0110-0005 110 312 2 6 3.1 9.5
R88L-EA-AF-0303-0206-0005 206 408 3 8 3.1 10.9
R88L-EA-AF-0303-0302-0005 302 504 4 10 3.1 12.4
R88L-EA-AF-0303-0398-0005 398 600 5 12 3.1 13.8
R88L-EA-AF-0303-0494-0005 494 696 6 14 3.1 15.2
R88L-EA-AF-0303-0590-0005 590 792 7 16 3.1 16.7
R88L-EA-AF-0303-0686-0005 686 888 8 18 3.1 18.1
R88L-EA-AF-0303-0782-0005 782 984 9 20 3.1 19.6
R88L-EA-AF-0303-0878-0005 878 1080 10 22 3.1 21.0
R88L-EA-AF-0303-0974-0005 974 1176 11 24 3.1 22.5
R88L-EA-AF-0303-1070-0005 1070 1272 12 26 3.1 23.9
R88L-EA-AF-0303-1166-0005 1166 1368 13 28 3.1 25.4
R88L-EA-AF-0303-1262-0005 1262 1464 14 30 3.1 26.8
R88L-EA-AF-0303-1358-0005 1358 1560 15 32 3.1 28.2
R88L-EA-AF-0303-1454-0005 1454 1656 16 34 3.1 29.7
R88L-EA-AF-0303-1550-0005 1550 1752 17 36 3.1 31.1
R88L-EA-AF-0303-1646-0005 1646 1848 18 38 3.1 32.6
R88L-EA-AF-0303-1742-0005 1742 1944 19 40 3.1 34.0
R88L-EA-AF-0303-1838-0005 1838 2040 20 42 3.1 35.5
R88L-EA-AF-0303-1934-0005 1934 2136 21 44 3.1 36.9
R88L-EA-AF-0303-2030-0005 2030 2232 22 46 3.1 38.3
R88L-EA-AF-0303-2126-0005 2126 2328 23 48 3.1 39.8

R88L-EA-AF-0306-_ (230/400 VAC)

Linear axis model Effective stroke (mm) L (mm) n N° of mounting holes Weight of moving table
including motor coil (kg)
Weight of the
complete axis (kg)
R88L-EA-AF-0306-0158-0005 158 408 3 8 3.9 11.6
R88L-EA-AF-0306-0254-0005 254 504 4 10 3.9 13.1
R88L-EA-AF-0306-0350-0005 350 600 5 12 3.9 14.5
R88L-EA-AF-0306-0446-0005 446 696 6 14 3.9 15.9
R88L-EA-AF-0306-0542-0005 542 792 7 16 3.9 17.4
R88L-EA-AF-0306-0638-0005 638 888 8 18 3.9 18.8
R88L-EA-AF-0306-0734-0005 734 984 9 20 3.9 20.3
R88L-EA-AF-0306-0830-0005 830 1080 10 22 3.9 21.7
R88L-EA-AF-0306-0926-0005 926 1176 11 24 3.9 23.2
R88L-EA-AF-0306-1022-0005 1022 1272 12 26 3.9 24.6
R88L-EA-AF-0306-1118-0005 1118 1368 13 28 3.9 26.1
R88L-EA-AF-0306-1214-0005 1214 1464 14 30 3.9 27.5
R88L-EA-AF-0306-1310-0005 1310 1560 15 32 3.9 28.9
R88L-EA-AF-0306-1406-0005 1406 1656 16 34 3.9 30.4
R88L-EA-AF-0306-1502-0005 1502 1752 17 36 3.9 31.8
R88L-EA-AF-0306-1598-0005 1598 1848 18 38 3.9 33.3
R88L-EA-AF-0306-1694-0005 1694 1944 19 40 3.9 34.7
R88L-EA-AF-0306-1790-0005 1790 2040 20 42 3.9 36.2
R88L-EA-AF-0306-1886-0005 1886 2136 21 44 3.9 37.6
R88L-EA-AF-0306-1982-0005 1982 2232 22 46 3.9 39.0
R88L-EA-AF-0306-2078-0005 2078 2328 23 48 3.9 40.5

R88L-EA-AF-0606-_ (230/400 VAC)

Linear axis model Effective stroke (mm) L (mm) n N° of mounting holes Weight of moving table
including motor coil (kg)
Weight of the
complete axis (kg)
R88L-EA-AF-0606-0110-0005 110 360 3 8 5.4 14.1
R88L-EA-AF-0606-0206-0005 206 456 4 10 5.4 15.9
R88L-EA-AF-0606-0302-0005 302 552 5 12 5.4 17.6
R88L-EA-AF-0606-0398-0005 398 648 6 14 5.4 19.3
R88L-EA-AF-0606-0494-0005 494 744 7 16 5.4 21.0
R88L-EA-AF-0606-0590-0005 590 840 8 18 5.4 22.8
R88L-EA-AF-0606-0686-0005 686 936 9 20 5.4 24.5
R88L-EA-AF-0606-0782-0005 782 1032 10 22 5.4 26.2
R88L-EA-AF-0606-0878-0005 878 1128 11 24 5.4 28.0
R88L-EA-AF-0606-0974-0005 974 1224 12 26 5.4 29.7
R88L-EA-AF-0606-1070-0005 1070 1320 13 28 5.4 31.4
R88L-EA-AF-0606-1166-0005 1166 1416 14 30 5.4 33.2
R88L-EA-AF-0606-1262-0005 1262 1512 15 32 5.4 34.9
R88L-EA-AF-0606-1358-0005 1358 1608 16 34 5.4 36.6
R88L-EA-AF-0606-1454-0005 1454 1704 17 36 5.4 38.4
R88L-EA-AF-0606-1550-0005 1550 1800 18 38 5.4 40.1
R88L-EA-AF-0606-1646-0005 1646 1896 19 40 5.4 41.8
R88L-EA-AF-0606-1742-0005 1742 1992 20 42 5.4 43.6
R88L-EA-AF-0606-1838-0005 1838 2088 21 44 5.4 45.3
R88L-EA-AF-0606-1934-0005 1934 2184 22 46 5.4 47.0
R88L-EA-AF-0606-2030-0005 2030 2280 23 48 5.4 48.8
R88L-EA-AF-0606-2126-0005 2126 2376 24 50 5.4 50.5

R88L-EA-AF-0609-_ (230/400 VAC)

Linear axis model Effective stroke (mm) L (mm) n N° of mounting holes Weight of moving table
including motor coil (kg)
Weight of the
complete axis (kg)
R88L-EA-AF-0609-0158-0005 158 456 4 10 6.7 17.2
R88L-EA-AF-0609-0254-0005 254 552 5 12 6.7 18.9
R88L-EA-AF-0609-0350-0005 350 648 6 14 6.7 20.6
R88L-EA-AF-0609-0446-0005 446 744 7 16 6.7 22.3
R88L-EA-AF-0609-0542-0005 542 840 8 18 6.7 24.1
R88L-EA-AF-0609-0638-0005 638 936 9 20 6.7 25.8
R88L-EA-AF-0609-0734-0005 734 1032 10 22 6.7 27.5
R88L-EA-AF-0609-0830-0005 830 1128 11 24 6.7 29.3
R88L-EA-AF-0609-0926-0005 926 1224 12 26 6.7 31.0
R88L-EA-AF-0609-1022-0005 1022 1320 13 28 6.7 32.7
R88L-EA-AF-0609-1118-0005 1118 1416 14 30 6.7 34.5
R88L-EA-AF-0609-1214-0005 1214 1512 15 32 6.7 36.2
R88L-EA-AF-0609-1310-0005 1310 1608 16 34 6.7 37.9
R88L-EA-AF-0609-1406-0005 1406 1704 17 36 6.7 39.7
R88L-EA-AF-0609-1502-0005 1502 1800 18 38 6.7 41.4
R88L-EA-AF-0609-1598-0005 1598 1896 19 40 6.7 43.1
R88L-EA-AF-0609-1694-0005 1694 1992 20 42 6.7 44.9
R88L-EA-AF-0609-1790-0005 1790 2088 21 44 6.7 46.6
R88L-EA-AF-0609-1886-0005 1886 2184 22 46 6.7 48.3
R88L-EA-AF-0609-1982-0005 1982 2280 23 48 6.7 50.1
R88L-EA-AF-0609-2078-0005 2078 2376 24 50 6.7 51.8

R88L-EA-AF-06012-_ (230/400 VAC)

Linear axis model Effective stroke (mm) L (mm) n N° of mounting holes Weight of moving table
including motor coil (kg)
Weight of the
complete axis (kg)
R88L-EA-AF-0612-0110-0005 110 456 4 10 7.9 18.3
R88L-EA-AF-0612-0206-0005 206 552 5 12 7.9 20.0
R88L-EA-AF-0612-0302-0005 302 648 6 14 7.9 21.7
R88L-EA-AF-0612-0398-0005 398 744 7 16 7.9 23.4
R88L-EA-AF-0612-0494-0005 494 840 8 18 7.9 25.2
R88L-EA-AF-0612-0590-0005 590 936 9 20 7.9 26.9
R88L-EA-AF-0612-0686-0005 686 1032 10 22 7.9 28.6
R88L-EA-AF-0612-0782-0005 782 1128 11 24 7.9 30.4
R88L-EA-AF-0612-0878-0005 878 1224 12 26 7.9 32.1
R88L-EA-AF-0612-0974-0005 974 1320 13 28 7.9 33.8
R88L-EA-AF-0612-1070-0005 1070 1416 14 30 7.9 35.6
R88L-EA-AF-0612-1166-0005 1166 1512 15 32 7.9 37.3
R88L-EA-AF-0612-1262-0005 1262 1608 16 34 7.9 39.0
R88L-EA-AF-0612-1358-0005 1358 1704 17 36 7.9 40.8
R88L-EA-AF-0612-1454-0005 1454 1800 18 38 7.9 42.5
R88L-EA-AF-0612-1550-0005 1550 1896 19 40 7.9 44.2
R88L-EA-AF-0612-1646-0005 1646 1992 20 42 7.9 46.0
R88L-EA-AF-0612-1742-0005 1742 2088 21 44 7.9 47.7
R88L-EA-AF-0612-1838-0005 1838 2184 22 46 7.9 49.4
R88L-EA-AF-0612-1934-0005 1934 2280 23 48 7.9 50.2
R88L-EA-AF-0612-2030-0005 2030 2376 24 50 7.9 52.9

R88L-EA-AF-1112-_ (230/400 VAC)

Linear axis model Effective stroke (mm) L (mm) n N° of mounting holes Weight of moving table
including motor coil (kg)
Weight of the
complete axis (kg)
R88L-EA-AF-1112-0110-0005 110 456 4 10 13.7 31.9
R88L-EA-AF-1112-0206-0005 206 552 5 12 13.7 35.2
R88L-EA-AF-1112-0302-0005 302 648 6 14 13.7 38.5
R88L-EA-AF-1112-0398-0005 398 744 7 16 13.7 41.7
R88L-EA-AF-1112-0494-0005 494 840 8 18 13.7 45.0
R88L-EA-AF-1112-0590-0005 590 936 9 20 13.7 48.3
R88L-EA-AF-1112-0686-0005 686 1032 10 22 13.7 51.5
R88L-EA-AF-1112-0782-0005 782 1128 11 24 13.7 54.8
R88L-EA-AF-1112-0878-0005 878 1224 12 26 13.7 58.1
R88L-EA-AF-1112-0974-0005 974 1320 13 28 13.7 61.3
R88L-EA-AF-1112-1070-0005 1070 1416 14 30 13.7 64.6
R88L-EA-AF-1112-1166-0005 1166 1512 15 32 13.7 67.9
R88L-EA-AF-1112-1262-0005 1262 1608 16 34 13.7 71.1
R88L-EA-AF-1112-1358-0005 1358 1704 17 36 13.7 74.4
R88L-EA-AF-1112-1454-0005 1454 1800 18 38 13.7 77.7
R88L-EA-AF-1112-1550-0005 1550 1896 19 40 13.7 80.9
R88L-EA-AF-1112-1646-0005 1646 1992 20 42 13.7 84.2
R88L-EA-AF-1112-1742-0005 1742 2088 21 44 13.7 87.5
R88L-EA-AF-1112-1838-0005 1838 2184 22 46 13.7 90.8
R88L-EA-AF-1112-1934-0005 1934 2280 23 48 13.7 94.0
R88L-EA-AF-1112-2030-0005 2030 2376 24 50 13.7 97.3
R88L-EA-AF-1112-2126-0005 2126 2472 25 52 13.7 100.6

R88L-EA-AF-1115-_ (230/400 VAC)

Linear axis model Effective stroke (mm) L (mm) n N° of mounting holes Weight of moving table
including motor coil (kg)
Weight of the
complete axis (kg)
R88L-EA-AF-1115-0158-0005 158 552 5 12 15.9 37.4
R88L-EA-AF-1115-0254-0005 254 648 6 14 15.9 40.6
R88L-EA-AF-1115-0350-0005 350 744 7 16 15.9 43.9
R88L-EA-AF-1115-0446-0005 446 840 8 18 15.9 47.2
R88L-EA-AF-1115-0542-0005 542 936 9 20 15.9 50.4
R88L-EA-AF-1115-0638-0005 638 1032 10 22 15.9 53.7
R88L-EA-AF-1115-0734-0005 734 1128 11 24 15.9 57.0
R88L-EA-AF-1115-0830-0005 830 1224 12 26 15.9 60.2
R88L-EA-AF-1115-0926-0005 926 1320 13 28 15.9 63.5
R88L-EA-AF-1115-1022-0005 1022 1416 14 30 15.9 66.8
R88L-EA-AF-1115-1118-0005 1118 1512 15 32 15.9 70.0
R88L-EA-AF-1115-1214-0005 1214 1608 16 34 15.9 73.3
R88L-EA-AF-1115-1310-0005 1310 1704 17 36 15.9 76.6
R88L-EA-AF-1115-1406-0005 1406 1800 18 38 15.9 79.8
R88L-EA-AF-1115-1502-0005 1502 1896 19 40 15.9 83.1
R88L-EA-AF-1115-1598-0005 1598 1992 20 42 15.9 86.4
R88L-EA-AF-1115-1694-0005 1694 2088 21 44 15.9 89.6
R88L-EA-AF-1115-1790-0005 1790 2184 22 46 15.9 92.9
R88L-EA-AF-1115-1886-0005 1886 2280 23 48 15.9 96.2
R88L-EA-AF-1115-1982-0005 1982 2376 24 50 15.9 99.4
R88L-EA-AF-1115-2078-0005 2078 2472 25 52 15.9 102.7
R88L-EA-AF-1115-2174-0005 2174 2568 26 54 15.9 106.0

Ordering information



Note: The symbols ① ② ③ ... show the recommended sequence to select the servomotor, cables and serial converter for a linear motors system.

Linear motor axis

230 VAC single phase/400 VAC three phase

Symbol

Specifications

Linear servo drive

Order code1

Accurax G5 EtherCAT

Rated force

Peak force

230 V

400 V

48 N

120 N

R88D-KN02H-ECT-L

R88D-KN06F-ECT-L

R88L-EA-AF-0303-££££-0005

96 N

240 N

R88D-KN04H-ECT-L

R88D-KN10F-ECT-L

R88L-EA-AF-0306-££££-0005

160 N

450 N

R88D-KN08H-ECT-L

R88D-KN15F-ECT-L

R88L-EA-AF-0606-££££-0005

240 N

675 N

R88D-KN10H-ECT-L

R88D-KN20F-ECT-L

R88L-EA-AF-0609-££££-0005

320 N

900 N

R88D-KN15H-ECT-L

R88D-KN30F-ECT-L

R88L-EA-AF-0612-££££-0005

608 N

1800 N

R88D-KN15H-ECT-L

R88D-KN30F-ECT-L

R88L-EA-AF-1112-££££-0005

760 N

2250 N

R88D-KN15H-ECT-L

R88D-KN30F-ECT-L

R88L-EA-AF-1115-££££-0005

Servo drive

Refer to Accurax G5 servo drive chapter for detailed drive specifications and selection of drive accessories.

Serial converter unit

Symbol

Specifications

Order code

Serial converter unit from 1 Vpp to G5 serial data transmission (with KTY sensor detection of iron-core motor coil)

R88A-SC01K-E

Serial converter unit from 1 Vpp to G5 serial data transmission (with NTC sensor detection of ironless motor coil)

R88A-SC02K-E

Note: If no temperature sensor is needed, then it does not matter which converter you use.

Serial converter cable to servo drive

Symbol

Appearance

Specifications

Order code



Accurax G5 drive to serial converter cable.

(Connectors R88A-CNK41L and DB-15)

1.5 m

R88A-CRKN001-5CR-E

3 m

R88A-CRKN003CR-E

5 m

R88A-CRKN005CR-E

10 m

R88A-CRKN010CR-E

15 m

R88A-CRKN015CR-E

20 m

R88A-CRKN020CR-E

Power cable

Symbol

Appearance

Specifications

Order code



For linear motor axis

R88L-EA-AF-0303-_

R88L-EA-AF-0306-_

1.5 m

R88A-CAWK001-5S-DE

3 m

R88A-CAWK003S-DE

5 m

R88A-CAWK005S-DE

10 m

R88A-CAWK010S-DE

15 m

R88A-CAWK015S-DE

20 m

R88A-CAWK020S-DE

For linear motor axis

R88L-EA-AF-0606-_

R88L-EA-AF-0609-_

R88L-EA-AF-0612-_

R88L-EA-AF-1112-_

R88L-EA-AF-1115-_

1.5 m

R88A-CAWL001-5S-DE

3 m

R88A-CAWL003S-DE

5 m

R88A-CAWL005S-DE

10 m

R88A-CAWL010S-DE

15 m

R88A-CAWL015S-DE

20 m

R88A-CAWL020S-DE

Linear encoder cable to serial converter

Symbol

Appearance

Specifications

Order code



Extension cable from linear encoder to serial converter.

(Connector DB-15)

(This extension cable is optional)

1.5 m

R88A-CFKA001-5CR-E

3 m

R88A-CFKA003CR-E

5 m

R88A-CFKA005CR-E

10 m

R88A-CFKA010CR-E

15 m

R88A-CFKA015CR-E

Hall and temperature sensors cable to serial converter

Symbol

Appearance

Specifications

Order code



Extension cable from hall and temperature sensors to serial converter.

(Connector DB-9)

(This extension cable is optional)

1.5 m

R88A-CFKB001-5CR-E

3 m

R88A-CFKB003CR-E

5 m

R88A-CFKB005CR-E

10 m

R88A-CFKB010CR-E

15 m

R88A-CFKB015CR-E

Connectors

Specification

Order code

Accurax G5 servo drive encoder connector (for CN4)

R88A-CNK41L

Hypertac power cable connector IP67

LPRA-06B-FRBN170

Dimensions

R88L-EA-AF-0303-_ (230/400 VAC)

Linear axis model

Effective stroke
in mm

L

in mm

n

Nº of mounting holes

Weight of moving table
including motor coil (kg)

Weight of the
complete axis (kg)

R88L-EA-AF-0303-0110-0005

110

312

2

6

3.1

9.5

R88L-EA-AF-0303-0206-0005

206

408

3

8

3.1

10.9

R88L-EA-AF-0303-0302-0005

302

504

4

10

3.1

12.4

R88L-EA-AF-0303-0398-0005

398

600

5

12

3.1

13.8

R88L-EA-AF-0303-0494-0005

494

696

6

14

3.1

15.2

R88L-EA-AF-0303-0590-0005

590

792

7

16

3.1

16.7

R88L-EA-AF-0303-0686-0005

686

888

8

18

3.1

18.1

R88L-EA-AF-0303-0782-0005

782

984

9

20

3.1

19.6

R88L-EA-AF-0303-0878-0005

878

1080

10

22

3.1

21.0

R88L-EA-AF-0303-0974-0005

974

1176

11

24

3.1

22.5

R88L-EA-AF-0303-1070-0005

1070

1272

12

26

3.1

23.9

R88L-EA-AF-0303-1166-0005

1166

1368

13

28

3.1

25.4

R88L-EA-AF-0303-1262-0005

1262

1464

14

30

3.1

26.8

R88L-EA-AF-0303-1358-0005

1358

1560

15

32

3.1

28.2

R88L-EA-AF-0303-1454-0005

1454

1656

16

34

3.1

29.7

R88L-EA-AF-0303-1550-0005

1550

1752

17

36

3.1

31.1

R88L-EA-AF-0303-1646-0005

1646

1848

18

38

3.1

32.6

R88L-EA-AF-0303-1742-0005

1742

1944

19

40

3.1

34.0

R88L-EA-AF-0303-1838-0005

1838

2040

20

42

3.1

35.5

R88L-EA-AF-0303-1934-0005

1934

2136

21

44

3.1

36.9

R88L-EA-AF-0303-2030-0005

2030

2232

22

46

3.1

38.3

R88L-EA-AF-0303-2126-0005

2126

2328

23

48

3.1

39.8



R88L-EA-AF-0306-_ (230/400 VAC)

Linear axis model

Effective stroke
in mm

L

in mm

n

Nº of mounting holes

Weight of moving table
including motor coil (kg)

Weight of the
complete axis (kg)

R88L-EA-AF-0306-0158-0005

158

408

3

8

3.9

11.6

R88L-EA-AF-0306-0254-0005

254

504

4

10

3.9

13.1

R88L-EA-AF-0306-0350-0005

350

600

5

12

3.9

14.5

R88L-EA-AF-0306-0446-0005

446

696

6

14

3.9

15.9

R88L-EA-AF-0306-0542-0005

542

792

7

16

3.9

17.4

R88L-EA-AF-0306-0638-0005

638

888

8

18

3.9

18.8

R88L-EA-AF-0306-0734-0005

734

984

9

20

3.9

20.3

R88L-EA-AF-0306-0830-0005

830

1080

10

22

3.9

21.7

R88L-EA-AF-0306-0926-0005

926

1176

11

24

3.9

23.2

R88L-EA-AF-0306-1022-0005

1022

1272

12

26

3.9

24.6

R88L-EA-AF-0306-1118-0005

1118

1368

13

28

3.9

26.1

R88L-EA-AF-0306-1214-0005

1214

1464

14

30

3.9

27.5

R88L-EA-AF-0306-1310-0005

1310

1560

15

32

3.9

28.9

R88L-EA-AF-0306-1406-0005

1406

1656

16

34

3.9

30.4

R88L-EA-AF-0306-1502-0005

1502

1752

17

36

3.9

31.8

R88L-EA-AF-0306-1598-0005

1598

1848

18

38

3.9

33.3

R88L-EA-AF-0306-1694-0005

1694

1944

19

40

3.9

34.7

R88L-EA-AF-0306-1790-0005

1790

2040

20

42

3.9

36.2

R88L-EA-AF-0306-1886-0005

1886

2136

21

44

3.9

37.6

R88L-EA-AF-0306-1982-0005

1982

2232

22

46

3.9

39.0

R88L-EA-AF-0306-2078-0005

2078

2328

23

48

3.9

40.5



R88L-EA-AF-0606-_ (230/400 VAC)

Linear axis model

Effective stroke
in mm

L

in mm

n

Nº of mounting holes

Weight of moving table
including motor coil (kg)

Weight of the
complete axis (kg)

R88L-EA-AF-0606-0110-0005

110

360

3

8

5.4

14.1

R88L-EA-AF-0606-0206-0005

206

456

4

10

5.4

15.9

R88L-EA-AF-0606-0302-0005

302

552

5

12

5.4

17.6

R88L-EA-AF-0606-0398-0005

398

648

6

14

5.4

19.3

R88L-EA-AF-0606-0494-0005

494

744

7

16

5.4

21.0

R88L-EA-AF-0606-0590-0005

590

840

8

18

5.4

22.8

R88L-EA-AF-0606-0686-0005

686

936

9

20

5.4

24.5

R88L-EA-AF-0606-0782-0005

782

1032

10

22

5.4

26.2

R88L-EA-AF-0606-0878-0005

878

1128

11

24

5.4

28.0

R88L-EA-AF-0606-0974-0005

974

1224

12

26

5.4

29.7

R88L-EA-AF-0606-1070-0005

1070

1320

13

28

5.4

31.4

R88L-EA-AF-0606-1166-0005

1166

1416

14

30

5.4

33.2

R88L-EA-AF-0606-1262-0005

1262

1512

15

32

5.4

34.9

R88L-EA-AF-0606-1358-0005

1358

1608

16

34

5.4

36.6

R88L-EA-AF-0606-1454-0005

1454

1704

17

36

5.4

38.4

R88L-EA-AF-0606-1550-0005

1550

1800

18

38

5.4

40.1

R88L-EA-AF-0606-1646-0005

1646

1896

19

40

5.4

41.8

R88L-EA-AF-0606-1742-0005

1742

1992

20

42

5.4

43.6

R88L-EA-AF-0606-1838-0005

1838

2088

21

44

5.4

45.3

R88L-EA-AF-0606-1934-0005

1934

2184

22

46

5.4

47.0

R88L-EA-AF-0606-2030-0005

2030

2280

23

48

5.4

48.8

R88L-EA-AF-0606-2126-0005

2126

2376

24

50

5.4

50.5



R88L-EA-AF-0609-_ (230/400 VAC)

Linear axis model

Effective stroke
in mm

L

in mm

n

Nº of mounting holes

Weight of moving table
including motor coil (kg)

Weight of the
complete axis (kg)

R88L-EA-AF-0609-0158-0005

158

456

4

10

6.7

17.2

R88L-EA-AF-0609-0254-0005

254

552

5

12

6.7

18.9

R88L-EA-AF-0609-0350-0005

350

648

6

14

6.7

20.6

R88L-EA-AF-0609-0446-0005

446

744

7

16

6.7

22.3

R88L-EA-AF-0609-0542-0005

542

840

8

18

6.7

24.1

R88L-EA-AF-0609-0638-0005

638

936

9

20

6.7

25.8

R88L-EA-AF-0609-0734-0005

734

1032

10

22

6.7

27.5

R88L-EA-AF-0609-0830-0005

830

1128

11

24

6.7

29.3

R88L-EA-AF-0609-0926-0005

926

1224

12

26

6.7

31.0

R88L-EA-AF-0609-1022-0005

1022

1320

13

28

6.7

32.7

R88L-EA-AF-0609-1118-0005

1118

1416

14

30

6.7

34.5

R88L-EA-AF-0609-1214-0005

1214

1512

15

32

6.7

36.2

R88L-EA-AF-0609-1310-0005

1310

1608

16

34

6.7

37.9

R88L-EA-AF-0609-1406-0005

1406

1704

17

36

6.7

39.7

R88L-EA-AF-0609-1502-0005

1502

1800

18

38

6.7

41.4

R88L-EA-AF-0609-1598-0005

1598

1896

19

40

6.7

43.1

R88L-EA-AF-0609-1694-0005

1694

1992

20

42

6.7

44.9

R88L-EA-AF-0609-1790-0005

1790

2088

21

44

6.7

46.6

R88L-EA-AF-0609-1886-0005

1886

2184

22

46

6.7

48.3

R88L-EA-AF-0609-1982-0005

1982

2280

23

48

6.7

50.1

R88L-EA-AF-0609-2078-0005

2078

2376

24

50

6.7

51.8



R88L-EA-AF-06012-_ (230/400 VAC)

Linear axis model

Effective stroke
in mm

L

in mm

n

Nº of mounting holes

Weight of moving table
including motor coil (kg)

Weight of the
complete axis (kg)

R88L-EA-AF-0612-0110-0005

110

456

4

10

7.9

18.3

R88L-EA-AF-0612-0206-0005

206

552

5

12

7.9

20.0

R88L-EA-AF-0612-0302-0005

302

648

6

14

7.9

21.7

R88L-EA-AF-0612-0398-0005

398

744

7

16

7.9

23.4

R88L-EA-AF-0612-0494-0005

494

840

8

18

7.9

25.2

R88L-EA-AF-0612-0590-0005

590

936

9

20

7.9

26.9

R88L-EA-AF-0612-0686-0005

686

1032

10

22

7.9

28.6

R88L-EA-AF-0612-0782-0005

782

1128

11

24

7.9

30.4

R88L-EA-AF-0612-0878-0005

878

1224

12

26

7.9

32.1

R88L-EA-AF-0612-0974-0005

974

1320

13

28

7.9

33.8

R88L-EA-AF-0612-1070-0005

1070

1416

14

30

7.9

35.6

R88L-EA-AF-0612-1166-0005

1166

1512

15

32

7.9

37.3

R88L-EA-AF-0612-1262-0005

1262

1608

16

34

7.9

39.0

R88L-EA-AF-0612-1358-0005

1358

1704

17

36

7.9

40.8

R88L-EA-AF-0612-1454-0005

1454

1800

18

38

7.9

42.5

R88L-EA-AF-0612-1550-0005

1550

1896

19

40

7.9

44.2

R88L-EA-AF-0612-1646-0005

1646

1992

20

42

7.9

46.0

R88L-EA-AF-0612-1742-0005

1742

2088

21

44

7.9

47.7

R88L-EA-AF-0612-1838-0005

1838

2184

22

46

7.9

49.4

R88L-EA-AF-0612-1934-0005

1934

2280

23

48

7.9

50.2

R88L-EA-AF-0612-2030-0005

2030

2376

24

50

7.9

52.9



R88L-EA-AF-1112-_ (230/400 VAC)

Linear axis model

Effective stroke
in mm

L

in mm

n

Nº of mounting holes

Weight of moving table
including motor coil (kg)

Weight of the
complete axis (kg)

R88L-EA-AF-1112-0110-0005

110

456

4

10

13.7

31.9

R88L-EA-AF-1112-0206-0005

206

552

5

12

13.7

35.2

R88L-EA-AF-1112-0302-0005

302

648

6

14

13.7

38.5

R88L-EA-AF-1112-0398-0005

398

744

7

16

13.7

41.7

R88L-EA-AF-1112-0494-0005

494

840

8

18

13.7

45.0

R88L-EA-AF-1112-0590-0005

590

936

9

20

13.7

48.3

R88L-EA-AF-1112-0686-0005

686

1032

10

22

13.7

51.5

R88L-EA-AF-1112-0782-0005

782

1128

11

24

13.7

54.8

R88L-EA-AF-1112-0878-0005

878

1224

12

26

13.7

58.1

R88L-EA-AF-1112-0974-0005

974

1320

13

28

13.7

61.3

R88L-EA-AF-1112-1070-0005

1070

1416

14

30

13.7

64.6

R88L-EA-AF-1112-1166-0005

1166

1512

15

32

13.7

67.9

R88L-EA-AF-1112-1262-0005

1262

1608

16

34

13.7

71.1

R88L-EA-AF-1112-1358-0005

1358

1704

17

36

13.7

74.4

R88L-EA-AF-1112-1454-0005

1454

1800

18

38

13.7

77.7

R88L-EA-AF-1112-1550-0005

1550

1896

19

40

13.7

80.9

R88L-EA-AF-1112-1646-0005

1646

1992

20

42

13.7

84.2

R88L-EA-AF-1112-1742-0005

1742

2088

21

44

13.7

87.5

R88L-EA-AF-1112-1838-0005

1838

2184

22

46

13.7

90.8

R88L-EA-AF-1112-1934-0005

1934

2280

23

48

13.7

94.0

R88L-EA-AF-1112-2030-0005

2030

2376

24

50

13.7

97.3

R88L-EA-AF-1112-2126-0005

2126

2472

25

52

13.7

100.6



R88L-EA-AF-1115-_ (230/400 VAC)

Linear axis model

Effective stroke
in mm

L

in mm

n

Nº of mounting holes

Weight of moving table
including motor coil (kg)

Weight of the
complete axis (kg)

R88L-EA-AF-1115-0158-0005

158

552

5

12

15.9

37.4

R88L-EA-AF-1115-0254-0005

254

648

6

14

15.9

40.6

R88L-EA-AF-1115-0350-0005

350

744

7

16

15.9

43.9

R88L-EA-AF-1115-0446-0005

446

840

8

18

15.9

47.2

R88L-EA-AF-1115-0542-0005

542

936

9

20

15.9

50.4

R88L-EA-AF-1115-0638-0005

638

1032

10

22

15.9

53.7

R88L-EA-AF-1115-0734-0005

734

1128

11

24

15.9

57.0

R88L-EA-AF-1115-0830-0005

830

1224

12

26

15.9

60.2

R88L-EA-AF-1115-0926-0005

926

1320

13

28

15.9

63.5

R88L-EA-AF-1115-1022-0005

1022

1416

14

30

15.9

66.8

R88L-EA-AF-1115-1118-0005

1118

1512

15

32

15.9

70.0

R88L-EA-AF-1115-1214-0005

1214

1608

16

34

15.9

73.3

R88L-EA-AF-1115-1310-0005

1310

1704

17

36

15.9

76.6

R88L-EA-AF-1115-1406-0005

1406

1800

18

38

15.9

79.8

R88L-EA-AF-1115-1502-0005

1502

1896

19

40

15.9

83.1

R88L-EA-AF-1115-1598-0005

1598

1992

20

42

15.9

86.4

R88L-EA-AF-1115-1694-0005

1694

2088

21

44

15.9

89.6

R88L-EA-AF-1115-1790-0005

1790

2184

22

46

15.9

92.9

R88L-EA-AF-1115-1886-0005

1886

2280

23

48

15.9

96.2

R88L-EA-AF-1115-1982-0005

1982

2376

24

50

15.9

99.4

R88L-EA-AF-1115-2078-0005

2078

2472

25

52

15.9

102.7

R88L-EA-AF-1115-2174-0005

2174

2568

26

54

15.9

106.0


1. For effective stroke distances available see dimensions section

1. For effective stroke distances available see dimensions section

Miben segíthetünk?

Ha kérdése van, vagy árajánlatot szeretne kérni, vegye fel velünk a kapcsolatot, vagy küldjön kérelmet.

+36 1 399 3050
Kapcsolatfelvétel

Vegyék fel velem a kapcsolatot Lineáris tengelyek (kartézián) - Accurax

r88l-ea-af prod

A *-gal jelölt mezőket kérjük kitölteni. Adatait bizalmasan kezeljük.

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Checkbox error notification

Text area error notification

Checkbox error notification

Checkbox error notification

Köszönjük megkeresését. Hamarosan kapcsolatba lépünk Önnel.

Műszaki hiba lépett fel. Az űrlap adatai nem kerültek feldolgozásra. Elnézést kérünk ezért, kérjük próbálja meg később ismét. Részletek:[details]

Download
+36 1 399 3050
+36 1 399 3050
Kérjen árajánlatot
Kérjen árajánlatot

Idézet a következőre: Lineáris tengelyek (kartézián) - Accurax

Az alábbi űrlap kitöltésével kérhet ajánlatot kiválasztott termékeinkről. A *-gal jelölt mezőket kérjük kitölteni. Adatait bizalmasan kezeljük.

r88l-ea-af prod

Személyes adatok

Lineáris tengelyek (kartézián) - Accurax

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Idézet részletei

Select notification error

Select notification error

Text area error notification

Checkbox error notification

Checkbox error notification

Köszönjük érdeklődését. Hamarosan továbbítjuk Önnek a kért információt.

Műszaki hiba lépett fel. Az űrlap adatai nem kerültek feldolgozásra. Elnézést kérünk ezért, kérjük próbálja meg később ismét. Részletek:[details]

Download
Kérjen árajánlatot
Kérjen árajánlatot

Gépkönyvek, adatlapok, letöltések
